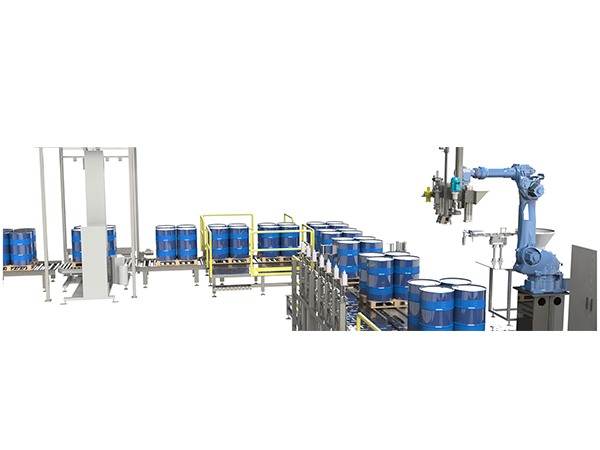

1: Overview of the process composition
Automatic loading——automatic conveying——automatic positioning——automatic opening——automatic filling——automatic sealing——automatic labeling——automatic pallet loading——automatic stacking and rowing——automatic full barrel conveying

Parameter:
1. Packing barrel: 200L barrel as shown in the figure;
2. Barrel feeding method: can be customized to be fully automatic barrel feeding according to site needs;
3. The system has automatic alarm and interlocking control;
4. According to the nature of the raw materials, the gun tip form of the filling machine can be customized as an inner plug type, an outer plug type, etc.;
5. According to the needs of the occasion, the automatic filling line can be designed and manufactured in accordance with the clean room, explosion-proof and other occasions.

2: Technical parameters of automatic weighing code filling production line:
1. Weighing range: 100～200 kg/barrel;
2. Weighing accuracy: ≤±0.2%;
3. Production capacity: 0～300 barrels/hour (specific reference requirements);
4. Power source: 380VAC/220VAC 50HZ, ±10%;
5. Control power supply: 24VDC;
6. Control air source: 0.5～0.8MPa;
7. Filling gun: Choose different corrosion-resistant materials according to actual raw materials;
8. .Automatically adjust the barrel according to needs, and can adopt mechanical positioning and CCD vision-servo positioning;
9. It can be customized according to site requirements. According to the production site and requirements, the line logistics direction and length can be designed.

3. Equipment features:
1. The structure is very simple, the failure rate is low, and it is easy to maintain and repair;
2. The main components are few and the maintenance cost is very low;
3. Professional control program, key components can perform equipment self-check, alarm output/start;
4. All operations can be done by touching on the screen of the control cabinet, the operation is very simple (upper computer is optional);
5. Abundant network communication connection, optional accessories (CAN bus, LonWorks bus, PROFIBUS bus, Ethernet, etc.) can be used to facilitate the statistical management of factory data.
